6 METRE MANITOU

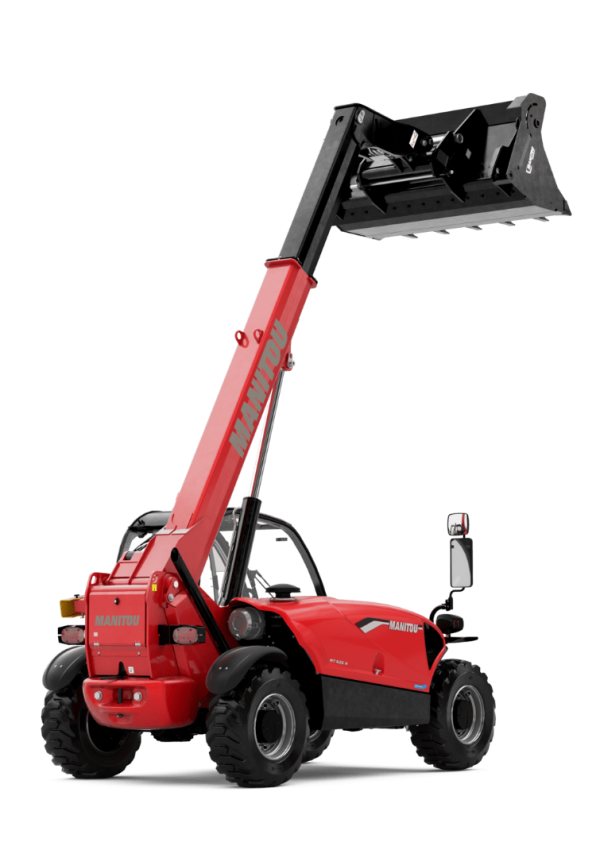

Manitou MT 625 H
Specially designed for building sites and renovation projects involving lower heights
The MT 625 H telehandler is specially designed for building sites and renovation projects involving lower heights. Its compact dimensions - with a width of 1.8 m and under 2 m in height - mean you can easily pass under thresholds and navigate congested areas. Its 3.3 m turning radius and 3 steering modes available provide you with excellent manoeuvrability.
Easy to use, this handler features an ergonomic instrument panel and JSM-equipped joystick to easily execute all machine functions in one control. The MT 625 H has a lift capacity of 2.5 t, with a maximum lift height of 5.85 m.
Its 75 hp engine reaches speeds of up to 25 km/h. Maintenance is made easy with the wide opening angle of the engine hood. The 90 l gear pump allows for simultaneous movement of the boom and telescope for increased productivity
The MT 625 H has a lift capacity of 2.5t, with a maximum lift height of 5.85m
Easily navigate congested areas
6 METRE MANITOU Specifications
Dimensions
Weight:
4,800 kg
Length:
3,835 mm
Width:
1,803 mm
Height:
1,930 mm
Other Specifications
Max Lifting Height:
5,850 mm
Max Lifting Weight:
2,500 kg
Standard Specifications
Aircon
Keypad Immobiliser
CD Radio
Wheel Nut Indicators
GPS Tracking
Site Manager Telematic Reporting
Amber & Green Beacons
Forward Facing Camera
Optional Extras
270 AI Camera System
360 Camera
Front Windscreen Protection
OKO Fill
Road Legal
Spare Parts Kit
TPMS
Rear View Camera
