JCB 540-200

JCB 540-200 Overview

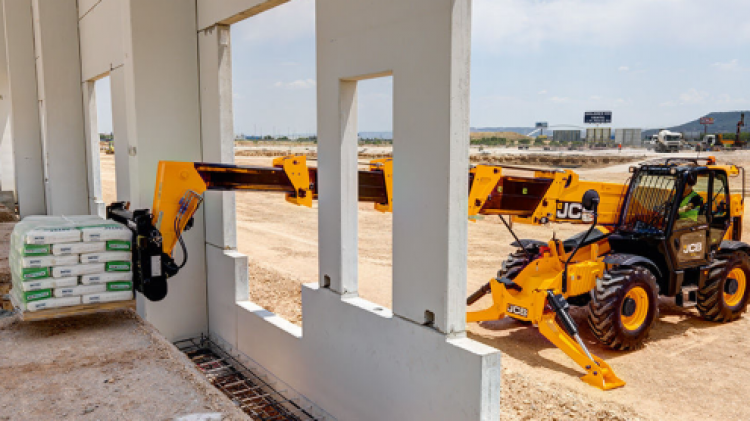

Ardent were the first to buy JCBs 540-200 and is now available for hire. With a 4 tonne maximum lifting capacity, and 20m lift height this is the largest telehandler in our range and is more than a match for cranes and rotos resulting in potential savings of both time and money hiring additional machines. Forward reach capability (200kg at 15.9m, 1500kg at 8.9m) means the 540-200 can reach across typical building foundations with ease. Servo hydraulic joystick with proportional hydraulics enabling simultaneous lift and extend operations from one lever A compact, affordable, alternative to cranes and roto machines 3 mode steer system with short length and compact footprint for maximum manoeuvrability Precise load placement and responsive State-of-the-art LiveLink telematics system with built in security New 5 stage, high grade material boom with double acting auxiliary hydraulics as standard, enabling the fitment of a wide variety of attachments such as hydraulic winches Excellent forward visibility / Large glass area / Large cab Comfortable seating with ergonomic controls Hydraulic chassis sway for accurate pick up and placement of loads on gradients (specification with stabilisers extended)

Safety equipment

Hard Hat



Fork Attachment

Fork Mounted Skip

Loading Bucket

Lifting Bracket

Power Brush

JCB 540-200 specification

Weight 12985 kg
Length 6810 mm
Width 3820 mm
Height 2720 mm
Max Lifting Height 20000 mm
Max Lifting Weight 4000 kg
