Hitachi ZX135 USB-6

Download Hitachi ZX135 USB-6 Specifications

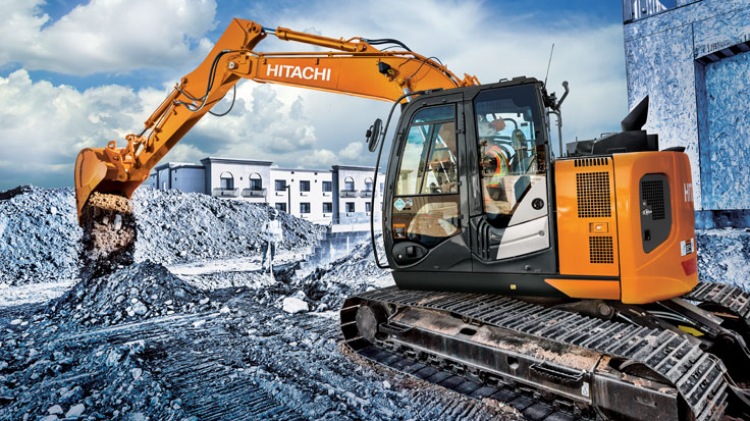

Hitachi ZX135 USB-6 Overview

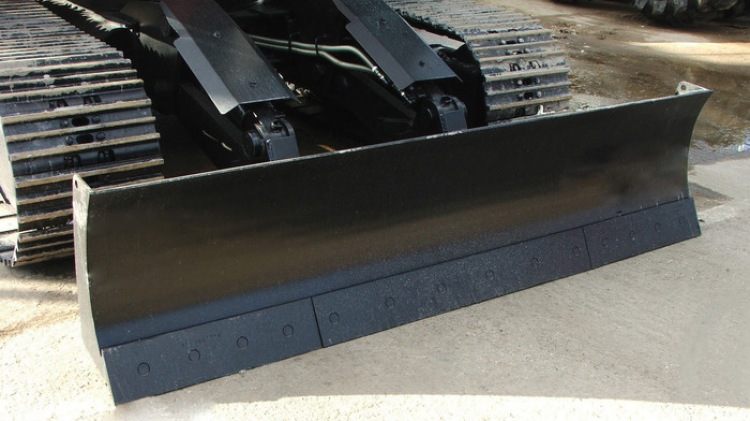

The new ZX135US-6 is designed to work effortlessly in confined spaces. It is more compact than the 14-tonne conventional model, without compromising on versatility. Due to its short-tail swing radius, the ZX135US-6 is ideal for job sites where space is limited, particularly in urban areas. It’s also available with a variety of options, such as a blade for grading.

We wanted to give you a machine that provides a smooth, fast and precise performance wherever it operates. This is why we increased the capacity of the popular power-boost feature. It now offers 10% more capacity than previous models to give you an enhanced level of performance.

The medium excavator helps you to save fuel owing to the HIOS IV technology. This reduces the hydraulic oil returned to the tank, which lowers fuel consumption by 7% in PWR mode.

In addition, the after-treatment device on the ZX135US-6 helps to reduce emissions and noise levels. For user-friendly operation, it has integrated a multi-function LCD monitor, which contains a wide range of useful, at-a-glance technical information.

Safety equipment

Boots

Hard Hat

Attachments

Auger

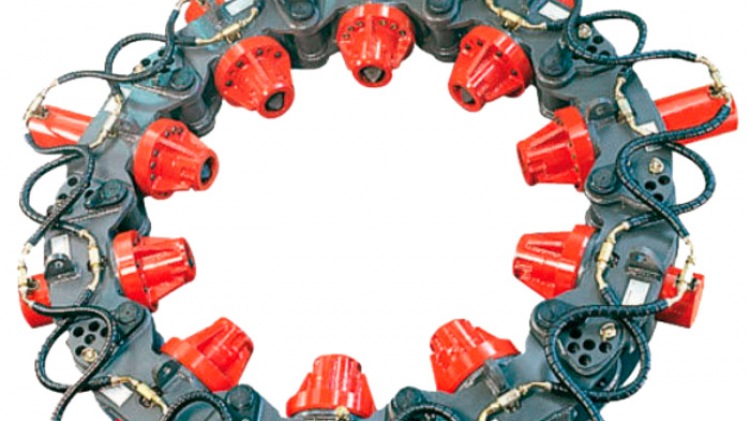

Breaker

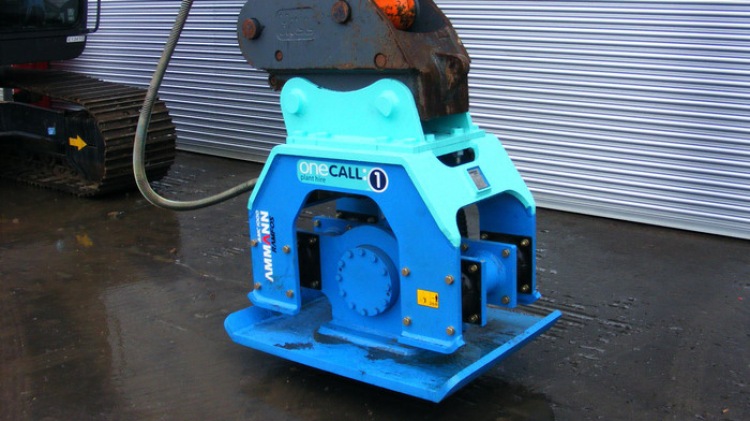

Compactor Plate

CVs

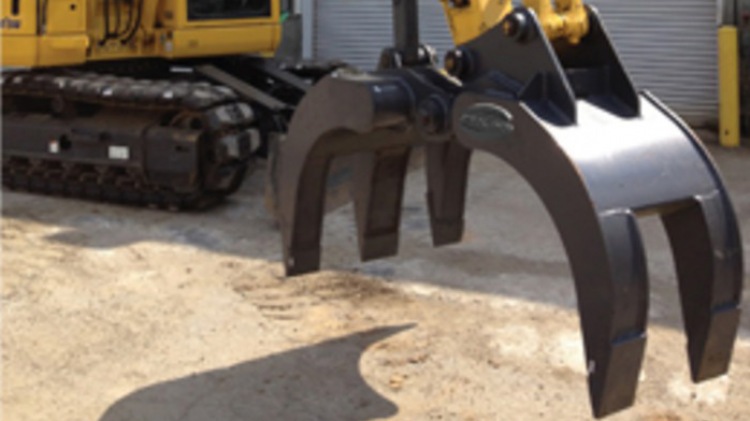

Digging Grab

Manual Pulveriser

Hitachi ZX135 USB-6 specification

Weight	15000 kg
Length	7390 mm
Width	2690 mm
Height	2870 mm
Max Digging Depth	5980 mm
Max Digging Reach	8860 mm
Max Cutting Height	9690 mm
Tail Overhang	145 mm
Bucket Size (in)	18, 24, 30, 36, 48 & Ditch
Bucket Size (mm)	450, 600, 750, 900, 1050 & Ditch
