Roto Telehandlers


Skip

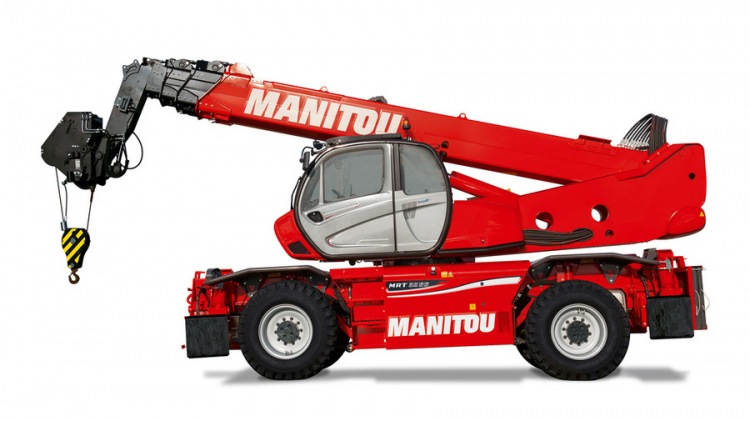

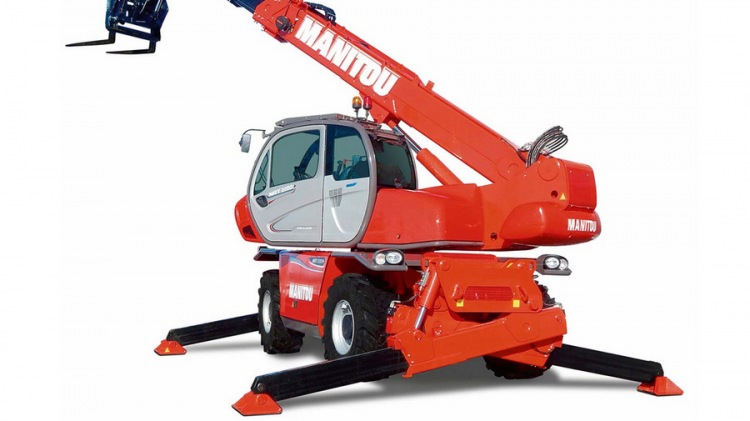

Hire one of our Rotating Telescopic Handlers for continuous 360 degree reach capabilities combined with impressive load heights. A true materials handling specialist, our Rotating Telehandler range offers precision control and efficient load distribution and unloading thanks to adjustable outriggers.  The rotating tele-handler (Roto) is widely recognised as one of the modern construction site "must have" machines with its versatility combining the advantages of a telehandler, a crane and an access platform in one unit. This makes the Roto the most flexible, multi-purpose plant on site today.  Their precision control through 360 degrees combined with exceptional manoeuvrability in tight conditions and a compact turning circle allow the Roto to bring lifting to areas of sites inaccessible by cranes and whether the machine has stabilisers deployed or retracted, the Roto offers absolute stability and safety.  The Roto Telehandler is versatile and can work in total safety on a wide range of terrains and as you would expect from industry leaders Manitou & Merlo, handling of the Roto is both intuitive and easy to control with precision electro-hydraulic control joysticks operating the precision movements of the boom with lifts of up to 35m.

For more information about our Roto Telehandler fleet download our technical guide here, contact us on 03333 202 555 or email: roto@ardenthire.com

Contract Lifting Services

Our contract lifting service offers a full end-to-end management of your total project requirements. Our service includes planning the lift, selecting and supplying the suitable equipment and skilled operatives to carry out your project requirements, slinging and signalling arrangements, supervising the lift and be responsible for the lifting operation.

For more information about our Contract lifting services contact us on 03333 202 555 or email: contractlifting@ardenthire.com


Standard Specifications

Aircon

Aircon

Belly Guard

Belly Guard

CD Radio

CD Radio

Chassis Levelling

Chassis Levelling

Keypad Immobiliser

Keypad Immobiliser

Wheel Nut Indicators

Wheel Nut Indicators

Front Windscreen Protection

Front Windscreen Protection

Amber & Green Beacons

Amber & Green Beacons

GPS Tracking

GPS Tracking

Road Legal

Road Legal

Site Manager Telematic Reporting

Site Manager Telematic Reporting

Slew & Height Restrictors

Slew & Height Restrictors


Optional Extras

360 Camera

360 Camera

Additional Crane Mats

Additional Crane Mats

Hi Viz Handrails & Steps

Hi Viz Handrails & Steps

270 AI Camera System

270 AI Camera System

TPMS

TPMS

Forward Facing Camera

Forward Facing Camera

OKO Fill

OKO Fill

Remove 4th Gear on Request

Remove 4th Gear on Request

Spare Parts Kit

Spare Parts Kit

Rear View Camera

Rear View Camera

21 METRE
Weight
16,095 kg
Length
6,780 mm
Width
2,430 mm
Height
3,050 mm
Max Lifting Height
21,000 mm
Max Lifting Weight
5,000 kg

View More

24 METRE
Weight
21,760 kg
Length
7,550 mm
Width
2,490 mm
Height
3,050 mm
Max Lifting Height
24,800 mm
Max Lifting Weight
7,000 kg

View More

25 METRE
Weight
18,600 kg
Length
7,830 mm
Width
2,460 mm
Height
3,050 mm
Max Lifting Height
24,600 mm
Max Lifting Weight
5,000 kg

View More

26 METRE
Weight
18,000 kg
Length
9,280 mm
Width
2,500 mm
Height
3,100 mm
Max Lifting Height
25,900 mm
Max Lifting Weight
6,000 kg

View More

30 METRE 5T
Weight
22,860 kg
Length
8,100 mm
Width
2,500 mm
Height
3,180 mm
Max Lifting Height
29,700 mm
Max Lifting Weight
5,000 kg

View More

30 METRE 6T
Weight
21,800 kg
Length
9,140 mm
Width
2,500 mm
Height
3,100 mm
Max Lifting Height
29,900 mm
Max Lifting Weight
6,000 kg

View More

32 METRE
Weight
23,860 kg
Length
8,100 mm
Width
2,500 mm
Height
3,180 mm
Max Lifting Height
31,600 mm
Max Lifting Weight
5,500 kg

View More

35 METRE
Weight
23,800 kg
Length
10,060 mm
Width
2,500 mm
Height
3,260 mm
Max Lifting Height
34,700 mm
Max Lifting Weight
7,000 kg

View More
